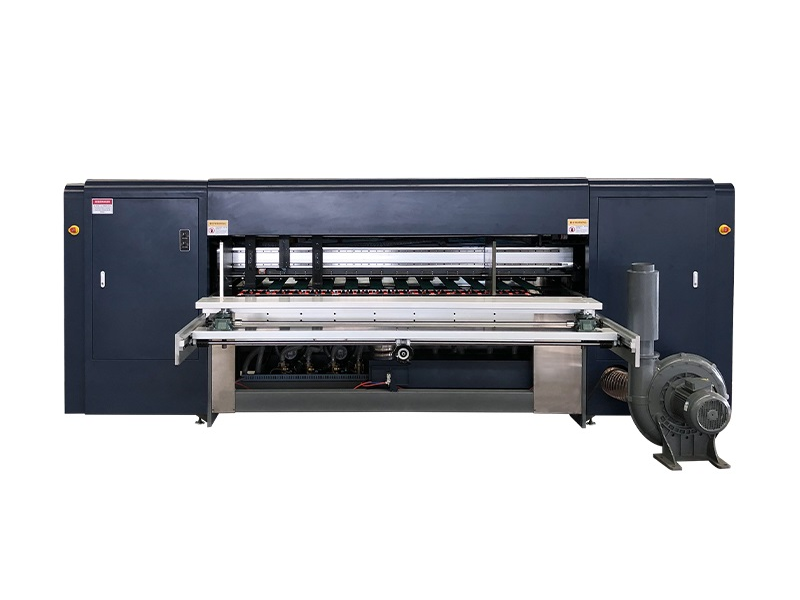

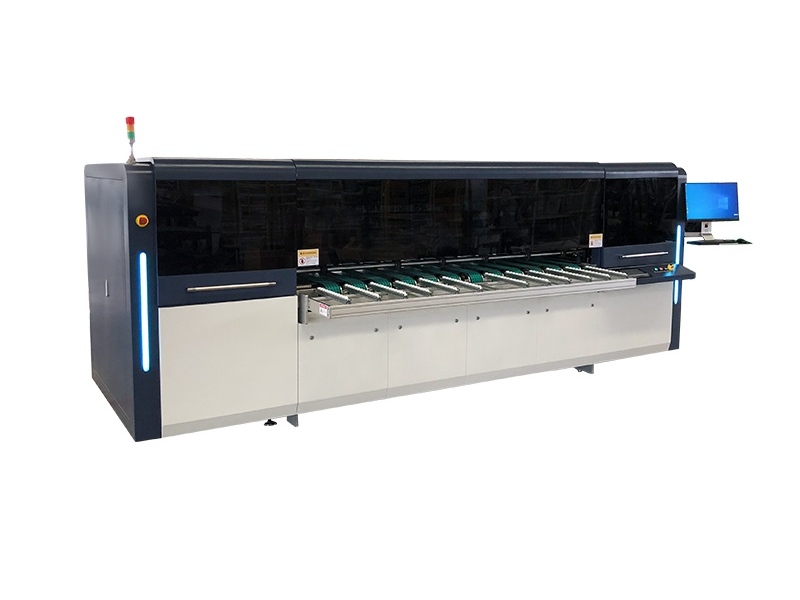

| Product Name | Digital Corrugated Box Printer (Scanning) |
| Product Model | RS-2600-8EH |
| Printhead Type | Micro piezoelectric high-precision Epso i3200 A1 print head |
| Printhead Number | 8 |
| Color model | CMYK |
| Ink type | Special water-based dye ink, Special water-based pigment ink |
| Medium distance | 2mm-4mm |
| Printing resolution | ≥360*600dpi |
| Printing format | Below 2600mm*1350mm under auto feeding |
| Printing Speed | Max 500m/hour |
| Drying speed | Liner-board can be dry once print out |
| Ink Supply | Automatic ink supply |
| Feeding method | Automatic leading edge feeding, default pressure roller platform, solution platform can be customizes |
| Working environment | 20-25°C Indoor, Humidity 50-70% |
| Material thickness | 1.5mm-35mm(max can be ordered to 50mm) |
| Operate system | Professional RIP system, professional printing system, Win7 system with 32 bit operating system or above |
| Power supply | About 20KW power:AC380±10%,50-60HZ |
| Machine size | 5645*3750*2123mm |
| Weight | 5000 KGS |
| Warranty | 12 months exclude the consumables |
